Linux下调试和使用Camera

介绍

摄像头是一款很重要的传感器，它相当于计算机的眼睛，日常开发中也很常见，在工业控制、汽车电子、物联网等领域扮演着十分重要的角色，可以用来拍照、视频采集、监控、视觉识别、测距、SLAM建图……

流程

Linux下适配摄像头的步骤

graph TD
    A[开始] --> B[查看摄像头参数]
    B --> C{摄像头是否在位?}
    C -->|是| D[根据编码格式和帧率初始化]
    C -->|否| Z[结束]
    D --> E[申请视频流缓冲]
    E --> F[开始采集视频流]
    F --> G[帧处理]
    G --> H[视频流转封装格式]
    H --> I[定时器空刷新图像]
    I --> J{继续采集?}
    J -->|是| F
    J -->|否| Z

工具

安装v4l-utils，以Ubuntu20.04为例，arm linux需要交叉编译v4l-utils源码

1	sudo apt install v4l-utils

调试

查看摄像头设备节点

1 2	dmesg \| grep video ls /dev/video*

用v4l2命令查看摄像头节点

1	v4l2-ctl --list-devices

查看设备节点支持的视频流编码格式

1	v4l2-ctl --device=/dev/video0 --list-formats

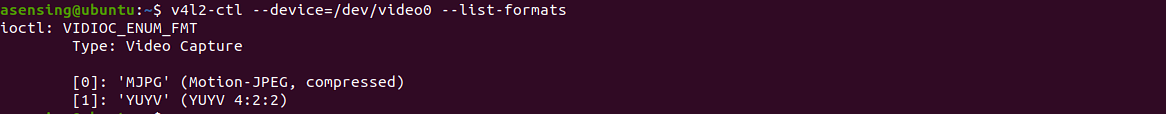

可以看到video0支持MJPG和YUYV两种视频流格式

1	v4l2-ctl --device=/dev/video0 --list-formats-ext

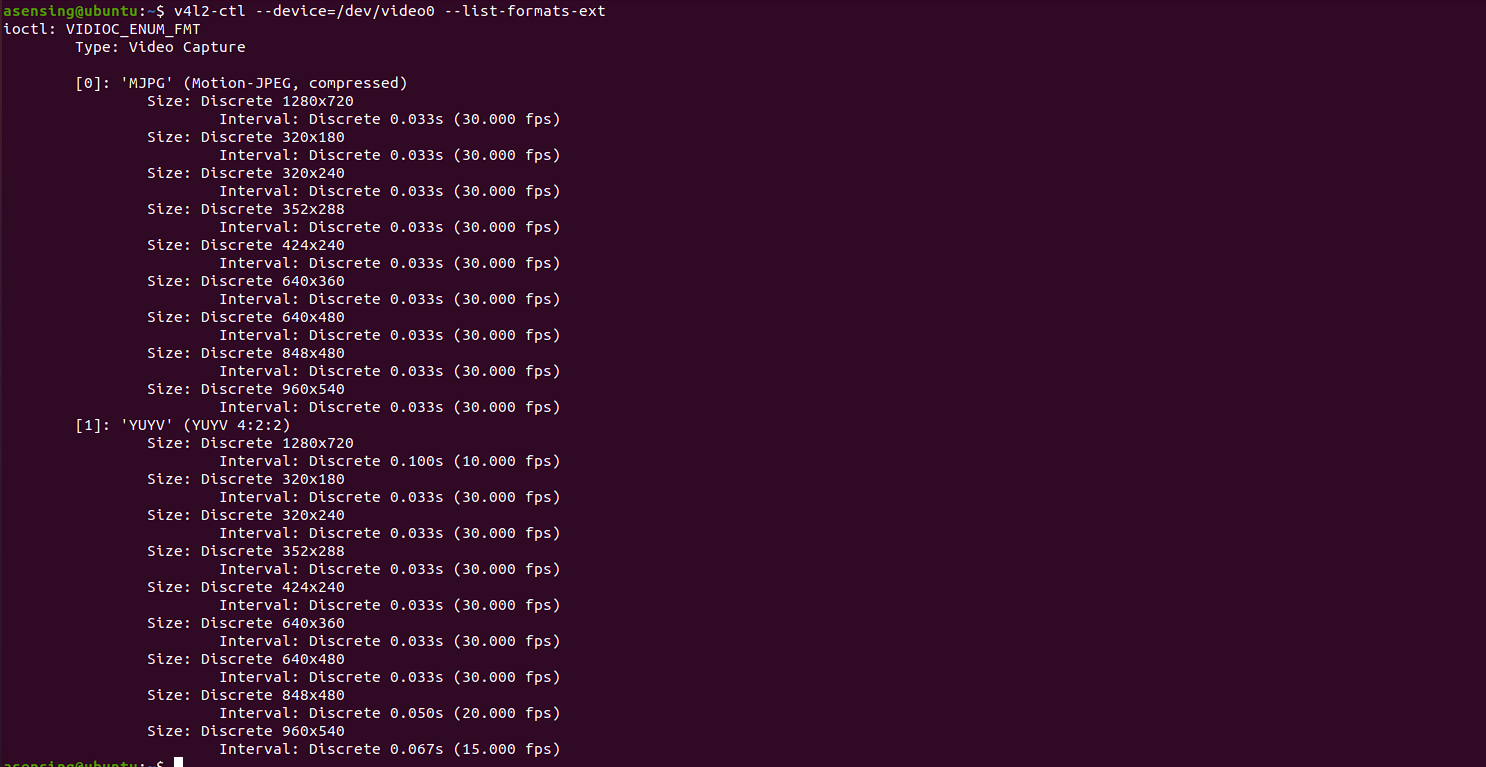

这条命令详细列举了摄像头在不同格式和分辨率下对应的帧率情况

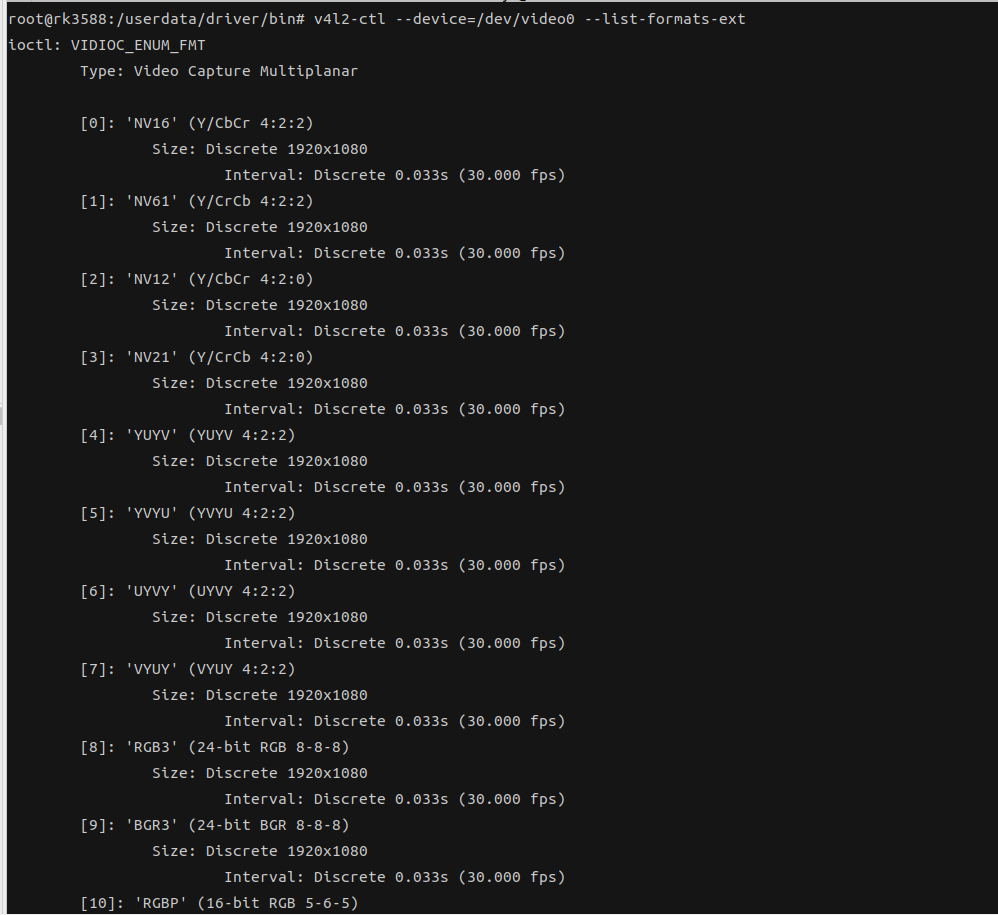

嵌入式平台，如rk3588上查看高清摄像头支持情况

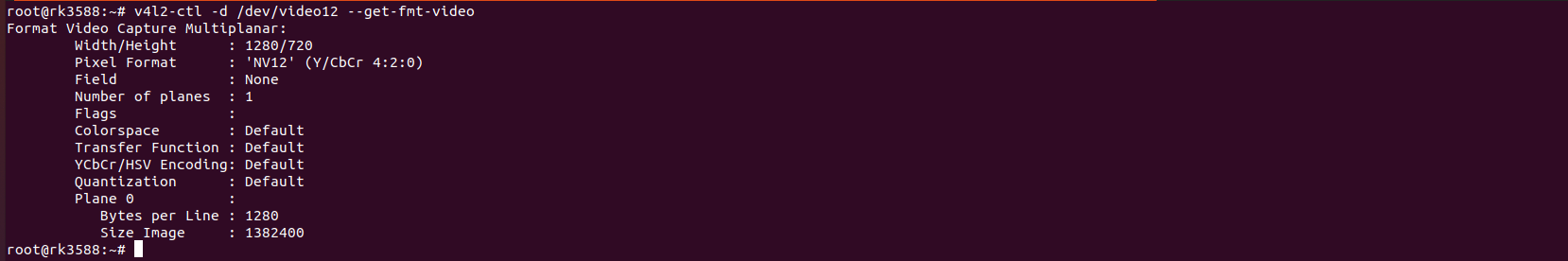

确定设备节点支持的像素格式

1	v4l2-ctl -d /dev/video12 --get-fmt-video

使用

初始化

以MJPEG格式为例

bool CameraCapture::initDevice()
{
    fd = open(deviceName.toLocal8Bit().constData(), O_RDWR | O_NONBLOCK, 0);
    if (fd == -1) {
        qWarning() << "Cannot open" << deviceName;
        return false;
    }

    // Check capabilities
    struct v4l2_capability cap;
    if (ioctl(fd, VIDIOC_QUERYCAP, &cap) == -1) {
        qWarning() << "Failed to query capabilities";
        return false;
    }

    if (!(cap.capabilities & V4L2_CAP_VIDEO_CAPTURE)) {
        qWarning() << "Device does not support video capture";
        return false;
    }

    if (!(cap.capabilities & V4L2_CAP_STREAMING)) {
        qWarning() << "Device does not support streaming";
        return false;
    }

    // Set format
    struct v4l2_format fmt = {};
    fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    fmt.fmt.pix.width = 1280;
    fmt.fmt.pix.height = 720;
    fmt.fmt.pix.pixelformat = V4L2_PIX_FMT_MJPEG;
    fmt.fmt.pix.field = V4L2_FIELD_NONE;

    if (ioctl(fd, VIDIOC_S_FMT, &fmt) == -1) {
        qWarning() << "Failed to set format";
        return false;
    }

    return true;
}

申请缓存

向内核态申请缓冲队列，用于缓存v4l2数据

bool CameraCapture::initMMap()
{
    struct v4l2_requestbuffers req = {};
    req.count = 4;
    req.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    req.memory = V4L2_MEMORY_MMAP;

    if (ioctl(fd, VIDIOC_REQBUFS, &req) == -1) {
        qWarning() << "Failed to request buffers";
        return false;
    }

    if (req.count < 2) {
        qWarning() << "Insufficient buffer memory";
        return false;
    }

    buffers = new buffer[req.count];
    nBuffers = req.count;

    for (unsigned int i = 0; i < req.count; ++i) {
        struct v4l2_buffer buf = {};
        buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        buf.memory = V4L2_MEMORY_MMAP;
        buf.index = i;

        if (ioctl(fd, VIDIOC_QUERYBUF, &buf) == -1) {
            qWarning() << "Failed to query buffer";
            return false;
        }

        buffers[i].length = buf.length;
        buffers[i].start = mmap(NULL, buf.length,
                               PROT_READ | PROT_WRITE, MAP_SHARED,
                               fd, buf.m.offset);

        if (buffers[i].start == MAP_FAILED) {
            qWarning() << "Failed to map buffer";
            return false;
        }

        // Queue the buffer
        if (ioctl(fd, VIDIOC_QBUF, &buf) == -1) {
            qWarning() << "Failed to queue buffer";
            return false;
        }
    }

    return true;
}

采集指令

内核开始采集缓存v4l2视频流数据

// Start capturing
enum v4l2_buf_type type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
if (ioctl(fd, VIDIOC_STREAMON, &type) == -1) {
    emit error("Failed to start streaming");
    uninitDevice();
    return false;
}

数据帧处理

拿到内核态mmap数据

void CameraCapture::captureFrame()
{
    fd_set fds;
    FD_ZERO(&fds);
    FD_SET(fd, &fds);

    struct timeval tv = {};
    tv.tv_sec = 2;
    tv.tv_usec = 0;

    int r = select(fd + 1, &fds, nullptr, nullptr, &tv);
    if (r == -1) {
        emit errorOccurred("select错误");
    } else if (r == 0) {
        emit errorOccurred("采集超时");
    }

    struct v4l2_buffer buf = {};
    buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    buf.memory = V4L2_MEMORY_MMAP;

    if (ioctl(fd, VIDIOC_DQBUF, &buf) == -1) {
        emit errorOccurred("获取帧失败");
    }

    QByteArray frameData(static_cast<char*>(buffers[buf.index].start), buf.bytesused);

    // 重新将缓冲区放入队列
    if (ioctl(fd, VIDIOC_QBUF, &buf) == -1) {
        emit errorOccurred("缓冲区重新入队失败");
    }

    if (!frameData.isEmpty()) {
        QImage image = decoder->decode(frameData);
        if (!image.isNull()) {
            emit newFrame(image);
        }
    }
}

MJPEG转换

MJPEG数据转可视化图像

QImage MJpegDecoder::decode(const QByteArray &mjpegData) {
    struct jpeg_decompress_struct cinfo;
    struct jpeg_error_mgr jerr;

    cinfo.err = jpeg_std_error(&jerr);
    jpeg_create_decompress(&cinfo);

    jpeg_mem_src(&cinfo, reinterpret_cast<const unsigned char*>(mjpegData.constData()), mjpegData.size());

    if (jpeg_read_header(&cinfo, TRUE) != JPEG_HEADER_OK) {
        emit errorOccurred("JPEG头解析失败");
        jpeg_destroy_decompress(&cinfo);
        return QImage();
    }

    if (jpeg_start_decompress(&cinfo) != TRUE) {
        emit errorOccurred("JPEG解码启动失败");
        jpeg_destroy_decompress(&cinfo);
        return QImage();
    }

    QImage image(cinfo.output_width, cinfo.output_height, QImage::Format_RGB888);

    JSAMPARRAY buffer = (*cinfo.mem->alloc_sarray)((j_common_ptr)&cinfo, JPOOL_IMAGE, cinfo.output_width * cinfo.output_components, 1);

    while (cinfo.output_scanline < cinfo.output_height) {
        jpeg_read_scanlines(&cinfo, buffer, 1);
        uchar *dest = image.scanLine(cinfo.output_scanline - 1);
        memcpy(dest, buffer[0], cinfo.output_width * cinfo.output_components);
    }

    jpeg_finish_decompress(&cinfo);
    jpeg_destroy_decompress(&cinfo);

    return image;
}

在位信号

判断video节点是否具备采集视频信号的能力（这个大多数情况下都需要，尤其是汽车电子，开机自检硬件设备是否正常）

int CameraCapture::is_video_capture_device(const char *device_path) {
    int fd = open(device_path, O_RDWR);
    if (fd == -1) {
        perror("Failed to open device");
        return 0;
    }

    struct v4l2_capability cap = {0};
    if (ioctl(fd, VIDIOC_QUERYCAP, &cap) == -1) {
        perror("Failed to query capabilities");
        close(fd);
        return 0;
    }

    close(fd);

    // 检查是否支持视频捕获
    if (cap.capabilities & V4L2_CAP_VIDEO_CAPTURE_MPLANE) {
        printf("%s 是一个视频捕获设备（如摄像头）\n", device_path);
        return 1;
    } else {
        printf("%s 不是视频捕获设备\n", device_path);
        return 0;
    }
}

图像显示

图像显示可以用QLabel直接显示或者通过QPainter自绘，这里不再详细展开

void MainWindow::updateFrame(const QImage &frame)
{
    imageLabel->setPixmap(QPixmap::fromImage(frame).scaled(
        imageLabel->width(), imageLabel->height(), Qt::KeepAspectRatio));
}

帧率控制

从上面的MJPG的帧率：30fps，我们需要一个定时器去轮询摄像头buffer数据

captureTimer->start(33); // ~30fps

connect(captureTimer, &QTimer::timeout, this, &CameraCapture::captureFrame);
